| ÖZELLİKLER / FEATURES |

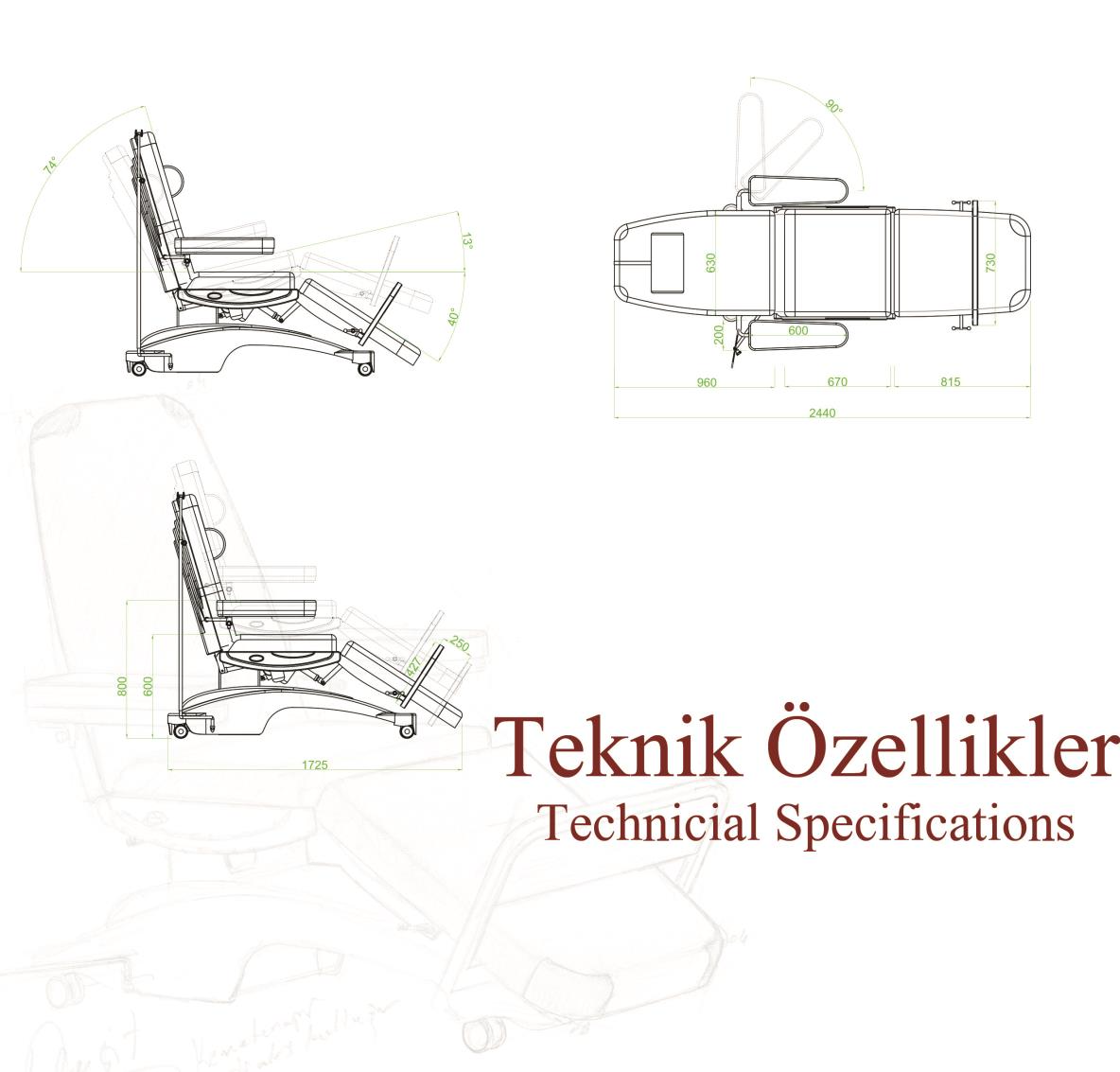

ÖLÇÜLER / DIMENSIONS |
| KOMPLE UZUNLUK / FULL LENGTH |
2010 mm |
79.13 Inch |
| EN / WIDTH |
625 mm |
24.6 Inch |
| KOLÇAKLI EN / WIDTH WITH ARMRESTS |
1050 mm |
41.33 Inch |
| MİN. YÜKSEKLİK / MIN. HEIGHT |
550 mm |
21.65 Inch |
| MAX. YÜKSEKLİK / MAX.HEIGHT |
750 mm |
29.52 Inch |
| SIRT EN / BACKREST WIDTH |
650 mm |
25.59 Inch |
| SIRT UZUNLUK / BACREST LENGTH |
650 mm |
25.59 Inch |
| OTURAK EN / SEAT WIDTH |
610 mm |
24.01 Inch |
| OTURAK UZUNLUK / SEAT LENGTH |
620 mm |
24.40 Inch |
| AYAK EN / FOOTREST WIDTH |
610 mm |
24.01 Inch |
| AYAK UZUNLUK / FOOTREST LENGTH |
620 mm |
24.40 Inch |
| KOLÇAK UZUNLUK / ARMREST LENGTH |
590 mm |
23.22 Inch |
| KOLÇAK EN / ARMREST WIDTH |
200 mm |
7.87 Inch |
| TEKER ÇAPI / WHEEL DIAMETER |
125 mm |
4.92 Inch |
| SIRT AÇISI / BACK ANGLE |
70° |
| AYAK AÇISI / FOOT ANGLE |
35° |
| TRENDELENBURG / TRENDELENBURG |
13° |
| TERS TRENDELENBURG / REVERSE TRENDELENBURG |
5 ° |
| KAFALIK EN / HEADREST WIDTH |
505 mm |
19.88 Inch |
| KAFALIK UZUNLUK / HEADREST LENGTH |
200 mm |
7.87 Inch |
| KRAMP BASAMAĞI EN / CRAMP SUPPORT WIDTH |
530 mm |
20.86 Inch |
| KRAMP BASAMAĞI HAREKETİ / CRAMP SUPPORT MOVEMENT |
300 mm |
11.81 Inch |
| SÜNGER DANSİTE / FOAM DENSITY |
VİSCO |
| DÖŞEME ÖZELLİK / UPHOLSTERY FEATURE |
SUNİ DERİ / LEATHERETTE |
| TAŞIMA KAPATSİTESİ / MAX. SAFE LOAD CAPACITY |
Up to 250 kg |
|
| ÜRÜN AĞIRLIK / PRODUCT WEIGHT |
115 kg |
253.53 Pound |

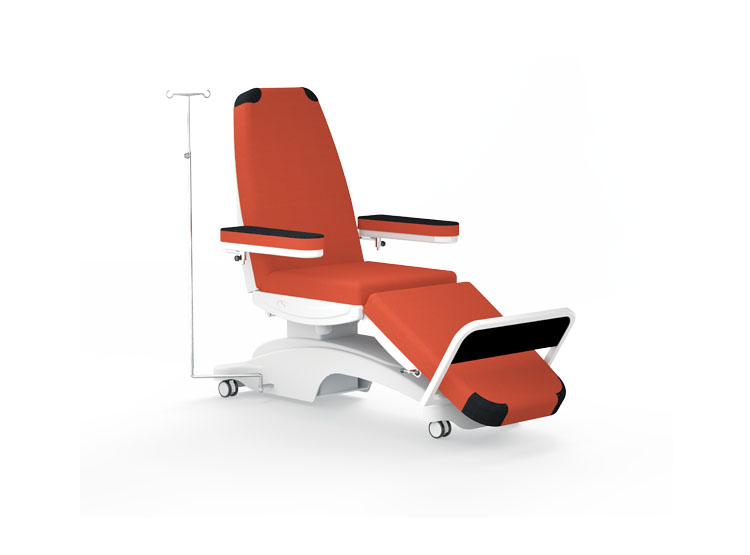

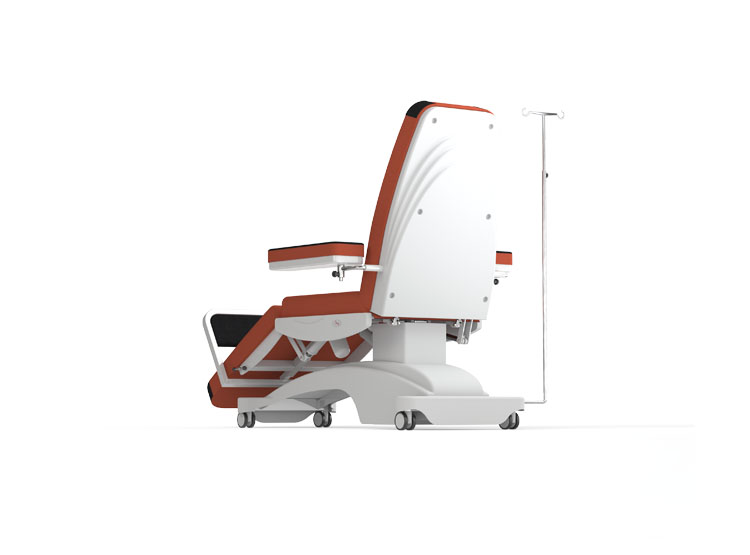

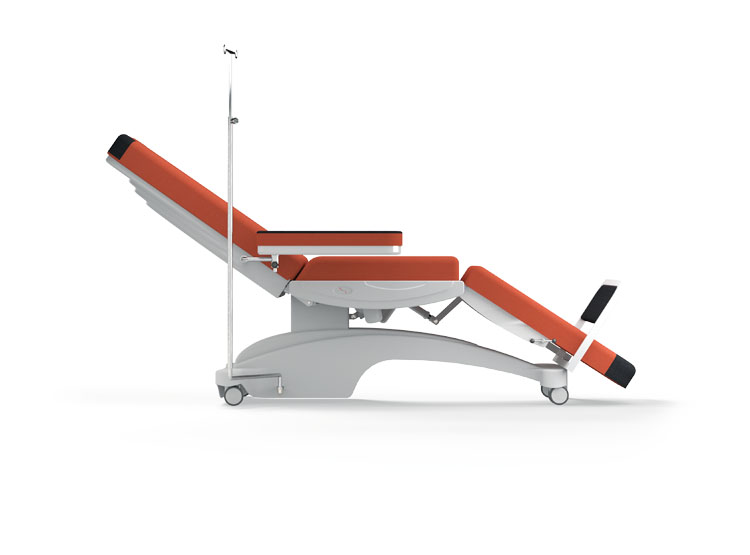

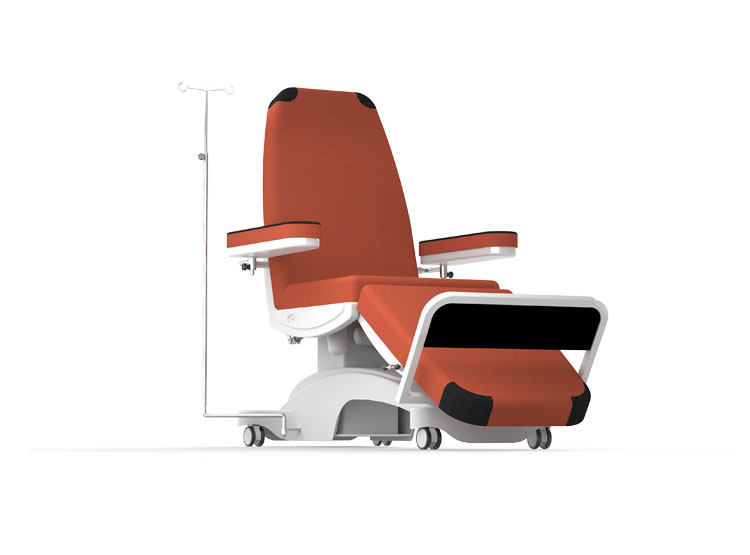

The dialysis chair consists of 3 main parts: back, seat and foot section. It has the ability to perform back up/down, height adjustment, foot section up/down and trendelenburg/reverse trendelenburg movements with 4 DC motors commanded by the hand control. It has a cramp step and head section that can be removed and attached and adjusted at the desired level. The cramp step can be adjusted according to the patient's height by pulling in up to 10 cm to prevent cramps during dialysis. The headrest can be adjusted according to the patient's height. A neck pillow is provided with the chair. Thus, patient comfort is prioritized. The chair is made of artificial leather that can be wiped without leaving stains, is covered with a material that does not absorb liquid, is easy to clean, hygienic, will not cause sweating and itching in long sessions and will not burn easily. The sponge used in the upholstery has a visco-elastic feature and is designed to take the shape of the body by spreading the patient's pressure load over a wide area and does not prevent micro blood circulation. The ABS coatings on the outside of the seat are designed to remain inside the upholstery and prevent dirt etc. from entering between the upholstery and plastic. The armrests can be adjusted in the desired direction, and they do not disrupt the parallelism with the ground by moving at the right rate with the movements of the back of the seat. The main body of the device (chassis) is manufactured safely against tipping. The chassis main carrier frame is made of 14 mm sheet metal and the lifting system is mounted on a 20 mm steel sheet carrier. Panamera Dialysis chair can be used in dialysis, oncology, chemotherapy, rehabilitation, blood collection and plasmapheresis treatment procedures. Optionally, a TV, dining table and serum hanger can be connected. It can be fixed in the desired place and easily carried thanks to 4 lockable wheels. It is guaranteed against manufacturing and workmanship defects for 2 (two) years.
