Beta Jinekolojik Muayene Masası

ÖZELLİKLER / FEATURES ÖLÇÜLER / DIMENSIONS
KOMPLE UZUNLUK / FULL LENGTH 1683 mm 66.25 Inch
EN / WIDTH 637 mm 25.07 Inch
KIZAKTAN KIZAĞA EN / WIDTH WITH ARMRESTS  708 mm 27.87 Inch
MİN. YÜKSEKLİK / MIN. HEIGHT 610 mm 24.01 Inch
MAX. YÜKSEKLİK / MAX.HEIGHT 810 mm 31.88 Inch
SIRT EN /  BACKREST WIDTH 630 mm 24.80  Inch
SIRT UZUNLUK / BACREST LENGTH 590 mm 23.22  Inch
OTURAK EN / SEAT WIDTH 600 mm 23.62 Inch
OTURAK UZUNLUK / SEAT LENGTH 400 mm 15.74 Inch
KOLÇAK UZUNLUK / ARMREST LENGTH 600 mm 23.62 Inch
KOLÇAK EN / ARMREST WIDTH 200 mm 7.87 Inch
SIRT AÇISI / BACK ANGLE 78 °
TRENDELENBURG / TRENDELENBURG 13 °
TERS TRENDELENBURG / REVERSE TRENDELENBURG 4 °
KAFALIK EN / HEADREST WIDTH 514 mm 20.23 Inch
KAFALIK UZUNLUK / HEADREST LENGTH 200 mm 7.87 Inch
AYAK UZATMA EN / FOOTREST WIDTH 570 mm 22.44 Inch
AYAK UZATMA UZUNLUK / FOOTREST LENGTH 630 mm 24.80 Inch
SÜNGER DANSİTE / FOAM DENSITY 30
DÖŞEME  ÖZELLİK / UPHOLSTERY FEATURE SUNİ DERİ / LEATHERETTE
TAŞIMA KAPATSİTESİ /  MAX. SAFE LOAD CAPACITY 180 kg 396.83 Pound
ÜRÜN AĞIRLIK / PRODUCT WEIGHT 95 kg 209.43 Pound

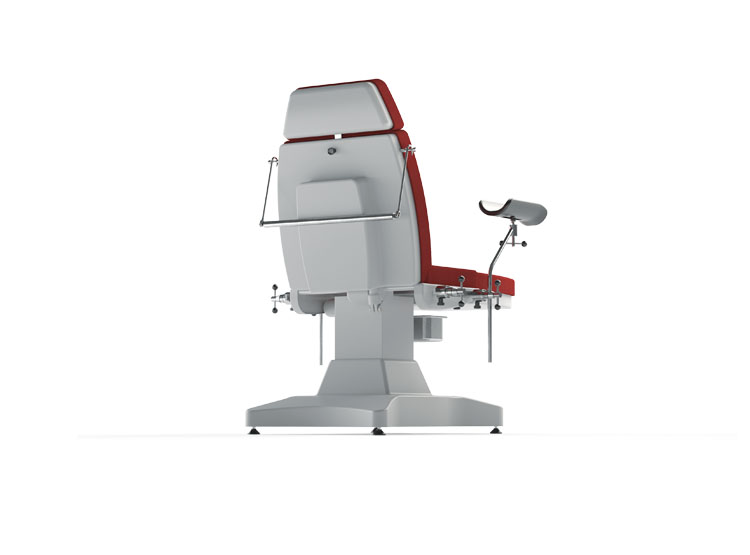

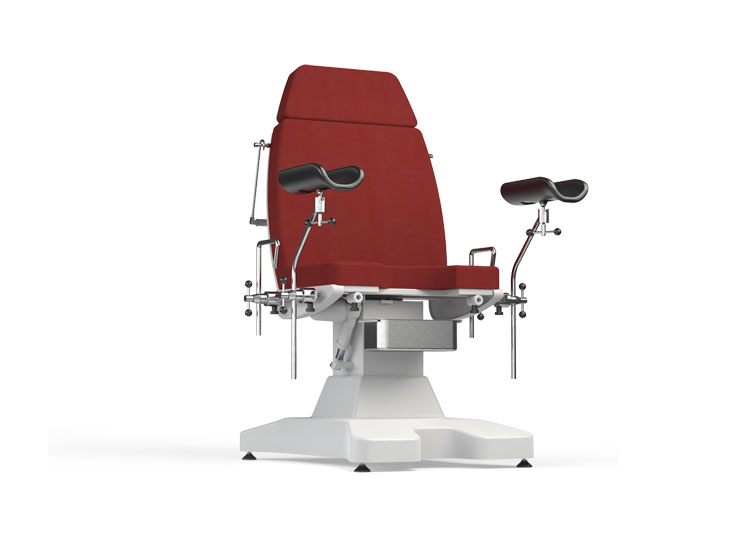

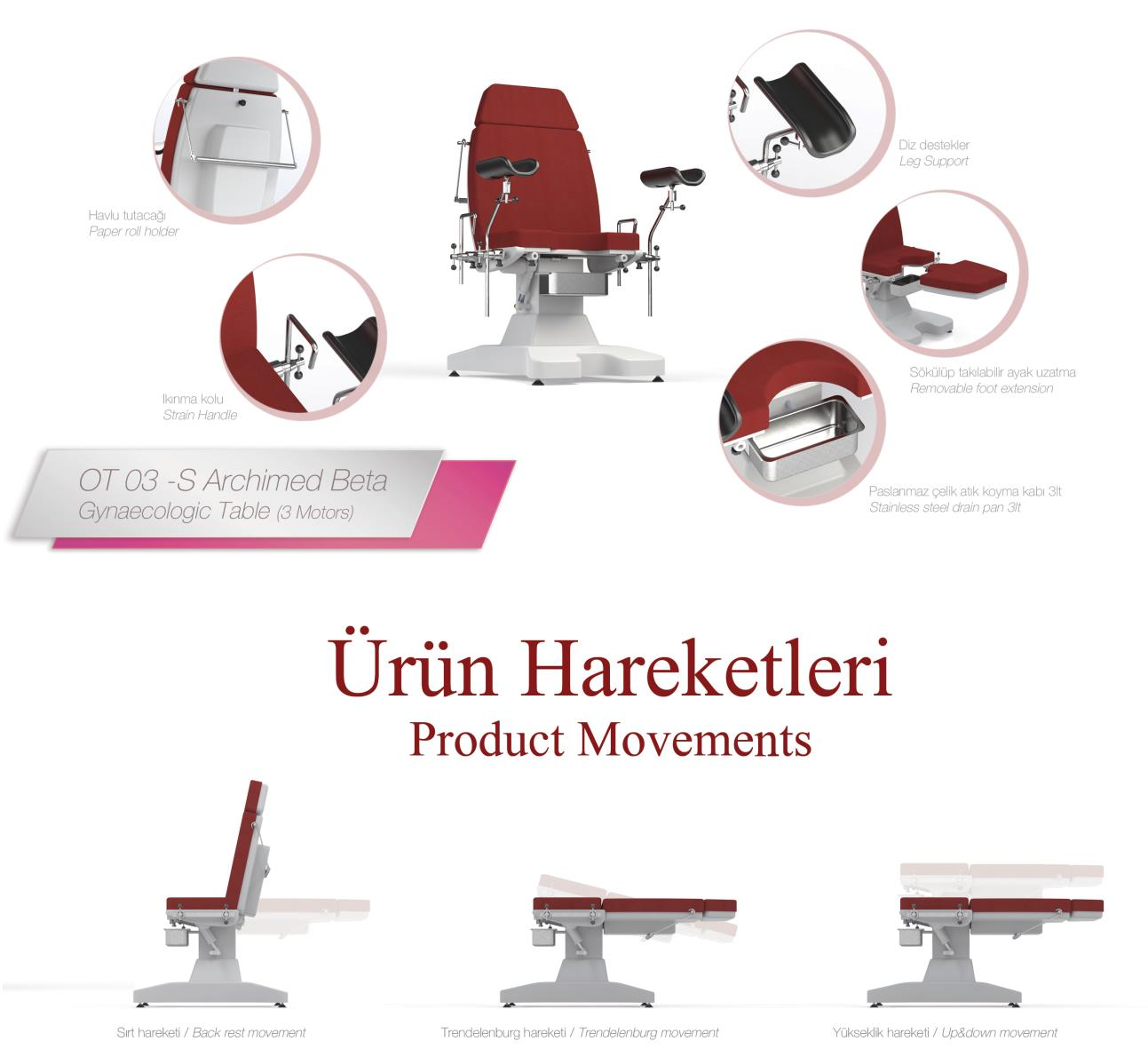

Archimed Beta Gynecological Examination and Intervention Table is designed especially for gynecology, examination, urology and minor surgical operations. Back up/down, height and trendelenburg/reverse trendelenburg adjustments can be made with the remote control thanks to 3 DC motors. Height adjustment is made vertically thanks to a special bearing system and thus there is no change in the position of the table while it is rising. ABS coatings outside the seat are designed to remain inside the upholstery and prevent dirt etc. from entering between the upholstery and plastic. Steel construction is protected against corrosion with galvanized coating and electrostatic powder paint and completely covered with ABS plastics. ABS plastic has an anti-bacterial and easy-to-clean feature. Since the drainage container is attached to the table's elevation mechanism with a special system, it remains fixed while performing trendelenburg and reverse trendelenburg movements and does not prevent the movements of the table. There is a section made of stainless material on the right and left of the seat where accessory parts can be attached. Thanks to the bushings, also made of stainless steel, mounted on these parts, the accessories mounted on the edge can move up & down, right & left and in degrees in 3 dimensions and can be fixed at the desired point. The table is guaranteed against manufacturing and workmanship defects for 2 (two) years.

.
